Name: Quick Connect Power Supply Wiring Distribution Hub Splitter Terminal Blocks Breakout Board
Brand: Shenzhen Jetacon Technology Limited
SKU: 2IF-Y8S
Availability: InStock

Aperçu Produits Conseil d'évasion de TB

Quick Connect Power Supply Wiring Distribution Hub Splitter Terminal Blocks Breakout Board

Détails sur le produit:

Place of Origin:	Guang Dong
Nom de marque:	Jetacon
Certification:	CE
Model Number:	2IF-Y8S

Conditions de paiement et expédition:

Minimum Order Quantity:	5 pieces
Prix:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1000ea monthly

Contact

Description de produit détaillée

Number of Contacts:	4 -6 - 8	Conductor Size:	11 - 20 AWG
Current:	20 Amps 8 Amps	Power supply:	0 Volts - 220 Volts

Application Reference: You may connect it to Electrical Control units
Input Voltage: DC or AC 0 Volts - 220 Volts
Wire Gauge: 22 - 12 AWG

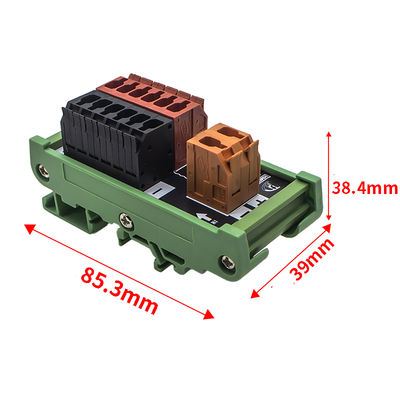

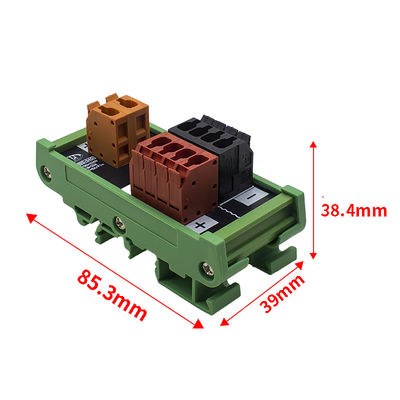

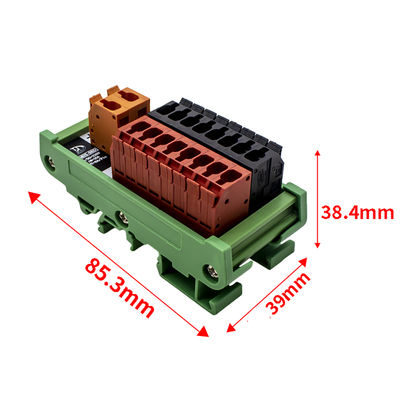

Size : 85mm L x 38mm W x 39mm H
Standard Din Rail installation ( 35mm )
Current Input ( Common Port) : 20 Amps
Current Output ( one way): 20 Amps (if the current is output to a one-way port only at the same time)
Current Output ( 8 ways) : 8 Amps ( If the current is output to the 8-way port at the same time)
